Description
IEEE-488 to Ethernet and USB/serial Interface
Original price was: $149.00.$129.00Current price is: $129.00.
Connect your IEEE-488 (HPIB,GPIB) instrument to anything with a browser (even a smartphone!), TelNet client, or USB/serial capability – all the methods supported individually by various other adapters.
* No special hardware nor drivers, use any OS
* Compatible with IEEE-488, GPIB, HPIB, IEEE-488.1, IEEE-488.2, and SCPI
* Ethernet RJ-45 with 1500 Vrms isolation per IEEE-802.3
* USB/serial port
* Emulates HP7470 plotter, BMP printer, etc. directly to HTML
* Data logger to record and graph measurements from a multimeter, etc. and graph on browser or download to a CSV file
* ProLogix command subset

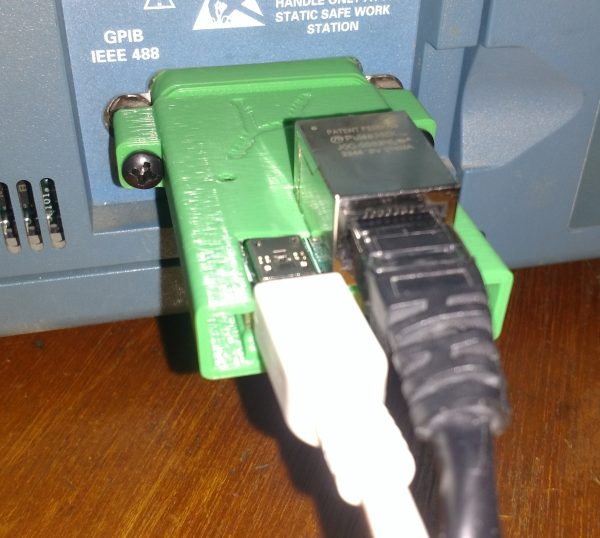

* Plugs directly into the IEEE-488 port of your instrument
* Firmware upgradeable over Ethernet (firmware updates are compatible with Rev 1 hardware)
* Supported protocols include:
— HTTP – standard web browser such as FireFox, Chrome, Edge, etc.
— TelNet – text-based Ethernet protocol supported by most operating systems
— DHCP – acquire a compatible IP address from your network’s router
— ICMP – “Ping” to get information about the network interface
— TFTP – standard protocol to send new firmware to the device
— NTP – network time protocol to set the clock in the unit
— NetBIOS – an older but still useful addressing protocol
— USB – appears as a standard serial port when plugged into a PC
91 in stock (can be backordered)
IEEE-488 to Ethernet and USB/serial Interface
Weight | 1 lbs |
---|---|
Dimensions | 8 × 4 × 1 in |
